Common Challenges in Load Cell Calibration

Level gauges are the most common measuring principles in production facilities and load cells are especially useful for gauging level in tanks. Level is a parameter in every pharmaceutical production and it is central that such measurements are accurate otherwise product quality and even production safety can be affected.

To ensure reliable measurements the level gauges need to be calibrated at regular intervals and in some industries calibration is needed to fulfill legislative requirements.

Traditional Weight-Based Calibration

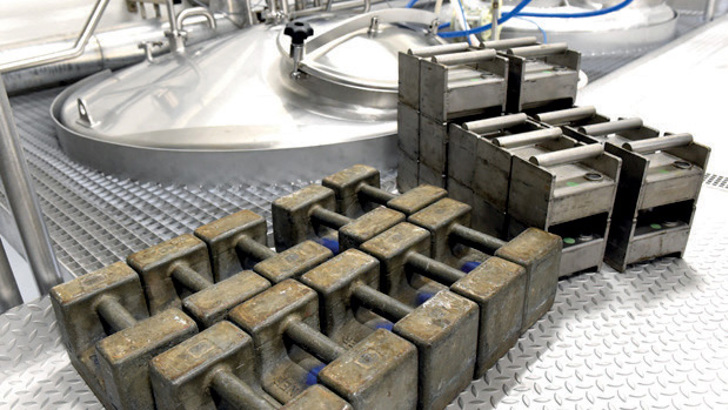

The traditional method of calibrating load cells is to hang weights on the side of the tank. This is tough and time-consuming work that requires lifting and placing many hundreds of kilograms onto the tank.

For each calibration point, the exact weight needed for that point must be placed, and the measurement must be allowed to stabilize. Additional weights are then added for the following points. When the calibration is completed, all weights must be removed again.

The Hidden Cost of Traditional Weight Calibration

Although weight-based calibration may appear straightforward, it often introduces significant hidden costs and operational challenges.

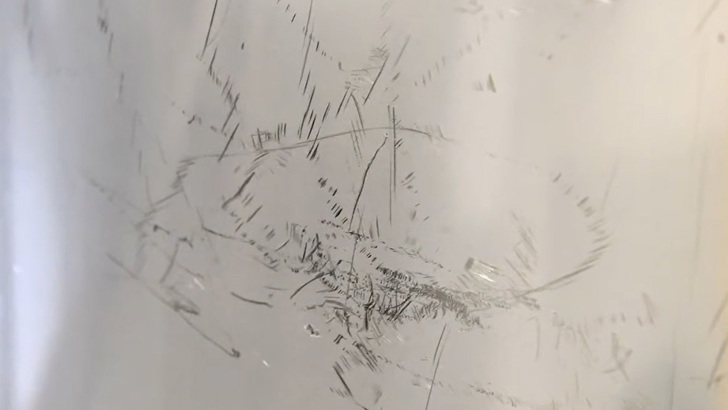

• Mechanical damage to tanks
  Hanging or handling heavy weights can cause scratching, dents, and surface wear — reducing asset lifetime and increasing maintenance costs.

• Halted or reduced production
  Calibration frequently requires production to stop or operate at reduced capacity, directly impacting output.

• Labour, logistics, and equipment costs
  Manual handling, specialised personnel, transport of certified weights, and setup time all add to the total calibration cost.

• Delays in validation and batch release
  Calibration activities can create bottlenecks that delay approval, release, or restart of production.

Together, these factors make traditional calibration a costly and disruptive activity — especially in facilities with multiple tanks or frequent calibration requirements.
