Load cells are widely used to determine level and total mass in production tanks. In batch processes, accurate load cell measurements are essential for correct dosing, consistent product quality, and reliable process control.

To ensure that measurements remain accurate over time, load cells must be calibrated at defined intervals. This article explains the basic principles of load cell calibration and outlines the most common calibration methods used in batch and tank applications.

What Is Load Cell Calibration?

Load cell calibration is the process of verifying and adjusting the relationship between the applied load and the output signal of the load cell system.

During calibration, known reference values are applied to the system and compared with the measured output. Any deviation between the reference and the measured value is identified and documented, and the system can be adjusted if required.

Regular calibration ensures that load cell measurements remain accurate, repeatable, and traceable.

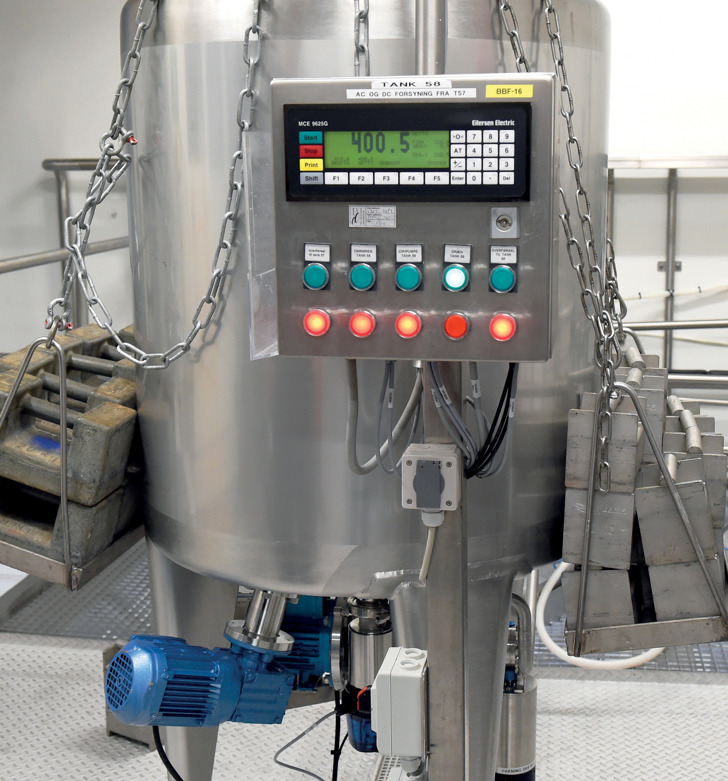

Insacal Batchrig Calibration With Weights

Traditional Calibration Using Test Weights

The most established method for calibrating load cells is the use of certified test weights. In this method, known weights are applied directly to the tank or load cell structure.

Calibration is typically performed in multiple steps, where increasing loads are applied and the corresponding measurement values are recorded. Once the calibration sequence is complete, all weights are removed again.

Test weight calibration is a well-known and widely accepted method, but it requires careful handling, sufficient space, and stable conditions to ensure reliable results.

Calibration Under Real Process Conditions

An alternative approach to load cell calibration is to perform calibration directly under real process conditions.

Instead of applying physical test weights, the tank is filled with a known quantity of liquid. The applied load is measured using a traceable reference system, and the result is compared with the load cell measurement.

By calibrating the system while it remains installed and supported exactly as during production, this method verifies the measurement performance under conditions that closely reflect actual operation.

Key Differences Between Calibration Methods

While both methods aim to verify load cell accuracy, they differ in how calibration is performed:

Test weight calibration applies known mass values externally to the tank structure
Process-based calibration applies load through controlled filling under operating conditions

The choice of method depends on factors such as tank size, accessibility, calibration frequency, and operational requirements.

Documentation and Traceability

Regardless of the calibration method used, proper documentation is essential.

Calibration documentation typically includes:

Applied reference values
Measured results
Deviations and acceptance criteria
Traceability to national or international standards

Clear and consistent documentation supports quality assurance, validation activities, and regulatory compliance.
