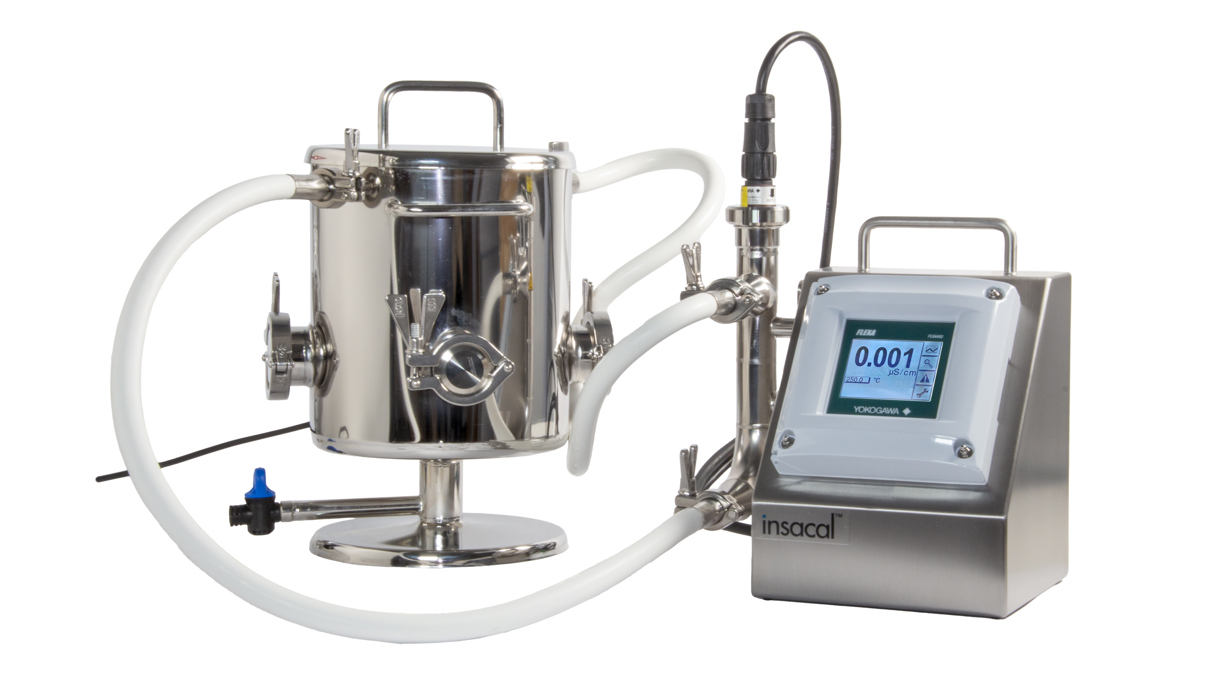

Insacal T9 Calibration Tank for Insacal Conductivity Calibrator enables efficient loop calibration of your conductivity sensors. Your sensor can be connected directly to the tank together with the Insacal Conductivity meter.
The tank holds up to 9 litres of calibration solution, which is circulated by an integrated pump through both the unit under test and the Insacal Conductivity Calibrator. This ensures a stable flow and makes sensor calibration straightforward and reliable.
Product Manager Calibration & Analysis
Tlf: +45 2761 4500
Email: Morten.Svendsen@insatech.com
The T9 Calibration Tank, with built-in circulation pump, makes it easy to perform conductivity calibrations. The tank can hold up to 9 litres of calibration solution and is produced in electro-polished stainless steel. Furthermore, the lid helps minimise the impact of CO₂. The calibration solution may consist of pure water from your own production, and if you wish to perform a multi-point calibration, you can simply add saline solution.
It is possible to mount several sensors in the T9 via its clamp connections, and by circulating the solution through the flow fitting on the Insacal Conductivity Calibrator, it becomes very easy to carry out multiple calibrations. With circulation and a controlled environment, several sources of error are eliminated.
The T9 is supplied as standard with 1½”, 2” and 2½” clamp connections, but these can be customised to suit your needs. In addition, the T9 includes 2 × 1 m tubes with mini tri-clamps. These tubes have been specifically selected as they do not affect the calibration, even at the lowest conductivity ranges.
If the standard fittings are not sufficient, we can supply special fittings on request – for example, fittings that allow you to connect long sensors as well as a variety of process connections.
Insacal Conductivity Calibrator ensures reliable, accurate, and traceable conductivity measurements - every time. By combining option with built-in temperature compensation, electrical verification, and an accredited master-meter design, it:
Saves time: Faster, simpler calibration and fewer repeated measurements
Reduces errors: Minimises issues caused by electrode fouling, sensor drift, or poor-quality calibration
Cuts costs: Less reliance on expensive or unstable calibration solutions
Increases reliability: Detects electrical or sensor issues early, preventing process disruptions
Supports compliance: Provides traceable, documented measurements for audits and quality standards
Offers flexibility: Use in the laboratory, at-line, or on-line to enable fast, informed decisions
With Insacal Conductivity Calibrator you gain peace of mind, consistent results, and more efficient operations.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Volume | 9 L (nominal) |
||||||||||||||||||
| Material (Tank) | Acid-resistant EN 1.4404 (316L) |
||||||||||||||||||
| Media | Only aqueous media in operation (not suitable for chemicals) |
||||||||||||||||||
| Supply voltage |
|
||||||||||||||||||
| Max. Liquid Temperature | 50 °C |
||||||||||||||||||
| Pump Supply | 0.5 - 50 W |
||||||||||||||||||
| Pump Pressure | 0.5 –4.5 mVs |
||||||||||||||||||
| Pump – Max. Flow | 28 L/min (max.) |
||||||||||||||||||
| Electrical spare parts | CE marked |
||||||||||||||||||
