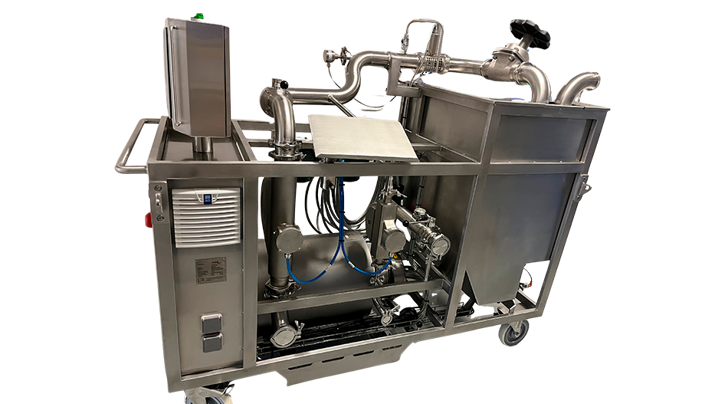

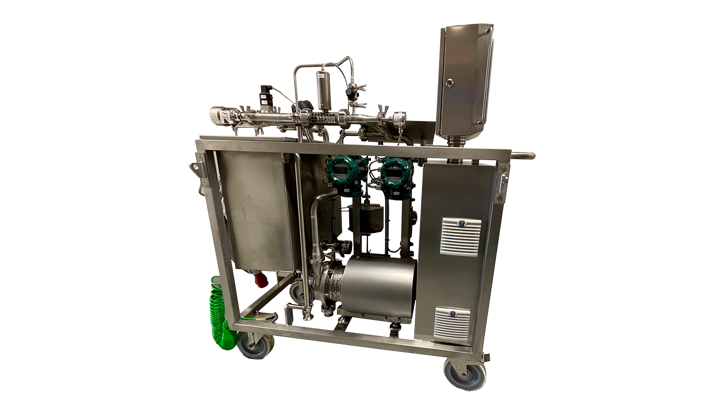

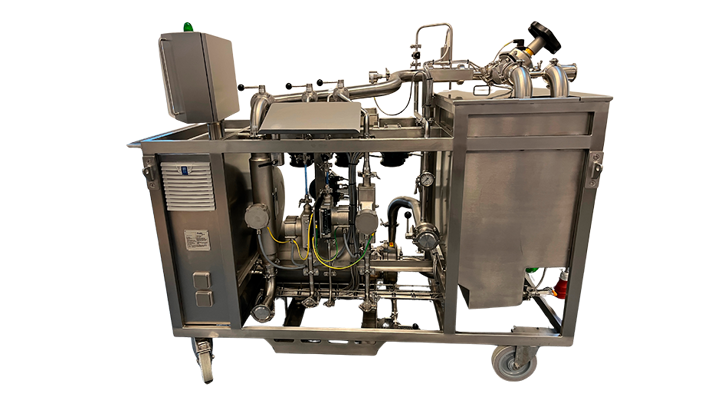

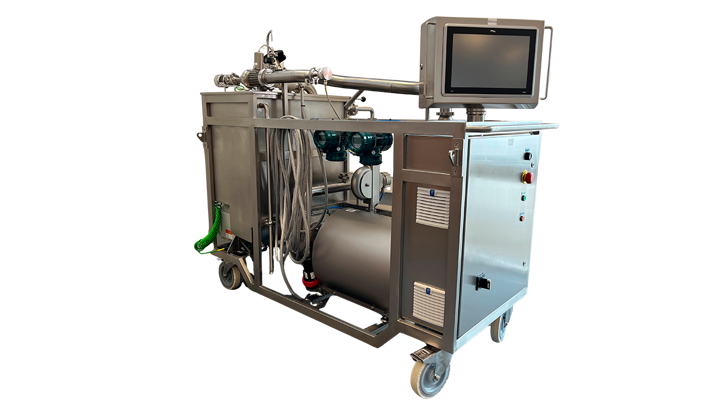

Insacal Flow Rig is available in several standard configurations and can be adapted to specific process requirements. Each model is designed to cover a defined flow range while maintaining high accuracy under real process conditions.
Choosing the Right Configuration
The differences between models are primarily defined by flow range, but also by how the system is configured to match your process requirements.
Typical configuration differences include:
- Flow range and number of flow meters
- Compact vs. extended rig design
- ATEX requirements
- Hygienic design level
Flow Range and Measurement Coverage
Each system is configured with one or more flow meters selected to match the required flow range.
A typical flow meter operates with a turndown ratio of approximately 1:20. To ensure accuracy across a wider range, multiple flow meters are combined. This allows reliable calibration from low to high flow within a single system.
| Product specifications - depending on model | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CIP | Yes |
||||||||||||||||||
| Steam Sterilisable (Steam in place) | Yes |
||||||||||||||||||
| ATEX | Yes (Optional) |
||||||||||||||||||
| Flow Range | 5…100.000 kg/h |
||||||||||||||||||
| Accuracy | 5…75.000 kg/h: 0,25% 100.000 kg/h is optional with accuracy 0,5% |
||||||||||||||||||
| Pressure | Up to 5 Bar |
||||||||||||||||||
| Temperature | Up to 40 °C |
||||||||||||||||||
| Ambient Temperature | +10…40 °C |
||||||||||||||||||
| Build Material |
|
||||||||||||||||||
| Surface Roughness | Better than Ra 0,8 |
||||||||||||||||||
| Pipework Connection | Flanges or Tri-Clamps |
||||||||||||||||||
| Data Connection to UUT | mA and Pulse |
||||||||||||||||||
| Power Supply | 400 VAC, 16 A or 32 A |
||||||||||||||||||
| Dimensions (L × W × H) | 1705 x 779 x 1770 mm (Depending on flow range) |
||||||||||||||||||
| Weight | Drained weight approx. 450 kg (Depending on flow range) |
||||||||||||||||||
| NOTE | Specifications refer to standard configurations. |
||||||||||||||||||
